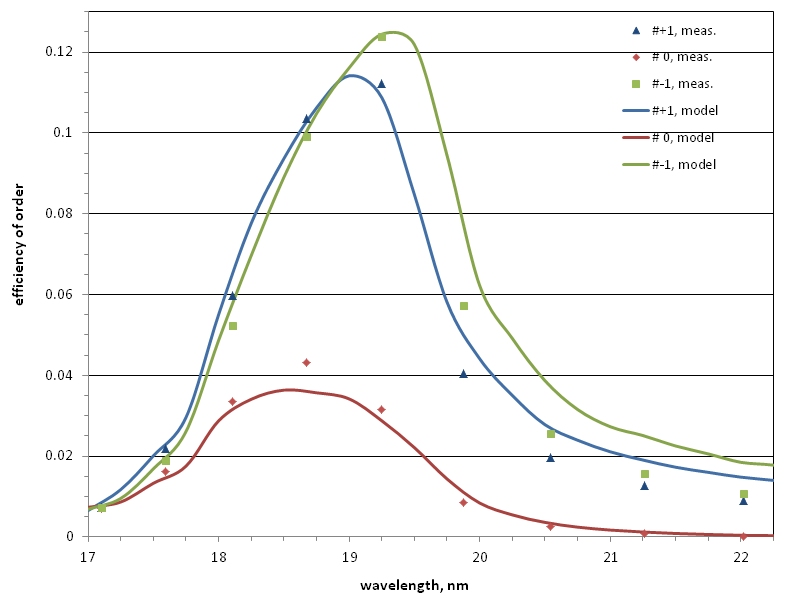

Fig. 78

Measured and calculated by PCGrate-SX v.6.5 with N = 800 and seven sets of 41 randomly-rough-trapezium boundaries efficiencies of the 4200 /mm Mo/Si FL1 grating at an angle of incidence of 6.5° for the indicated diffraction orders in the 17—22.25-nm wavelength range.
