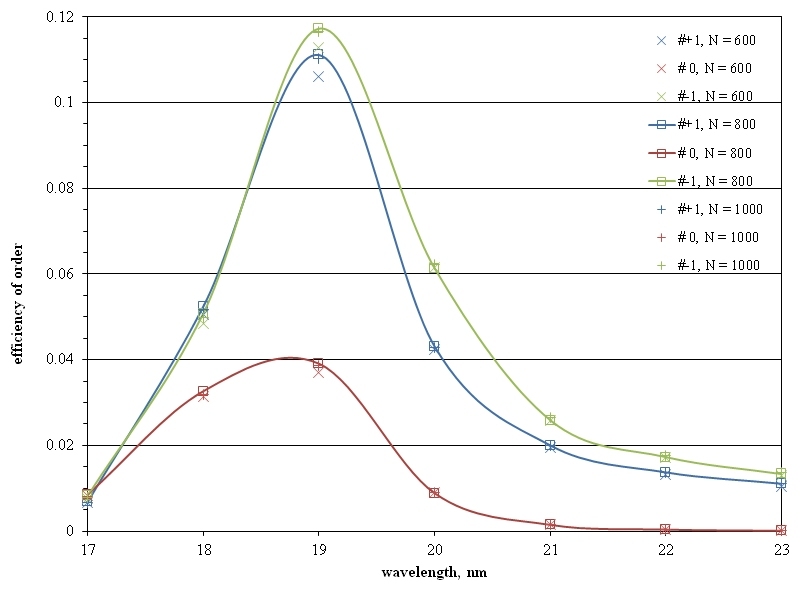

Fig. 74

Efficiency convergence in principal orders of the 4200 /mm 41-rough-boundary Mo/Si FL1 grating computed using seven boundary sets and different accuracy parameter N in PCGrate-SX v.6.5 at an angle of incidence of 6.5° vs. short-band wavelength.
