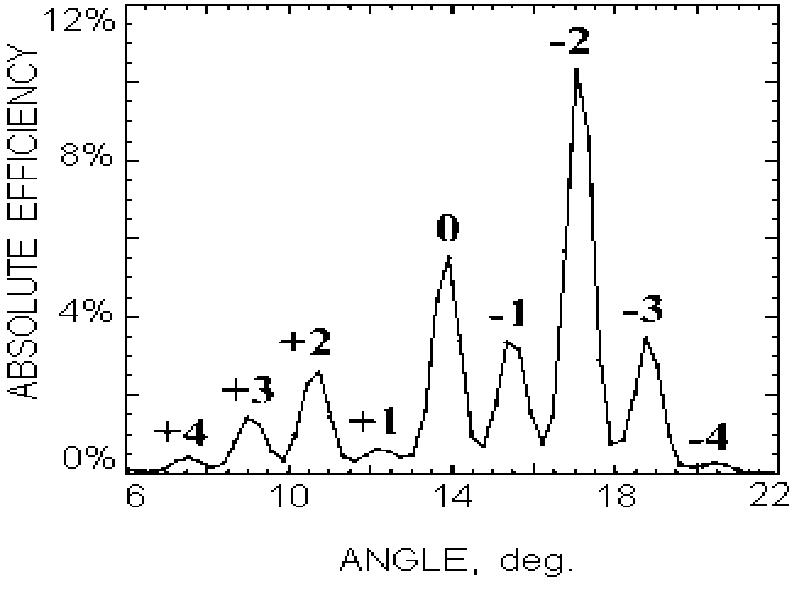

Measured efficiencies of the multilayer MoRu/Be grating at a wavelength of 11.37 nm. The angle of incidence is -13.9°. The 0.5° widths (at the half-peak efficiency levels) of the orders shown in the figure result from the 1-mm slit over the detector.
International Intellectual Group, Inc.
A world leader in modeling of the diffraction gratings efficiency for spectroscopy, astronomy, telecommunications, photolithography, and nanotechnology.
