Fig. 33

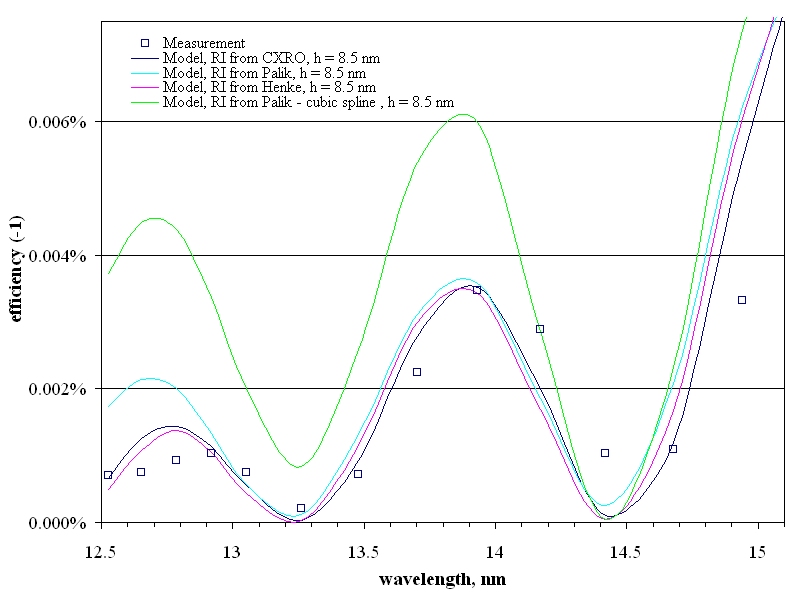

Measured and calculated efficiency of -1 order of a replica of a 2400 g/mm blazed holographic grating, plotted in the investigated short wavelength range. Efficiency models calculated for the average AFM groove profile of 8.5 nm depth and RIs taken from different sources.
