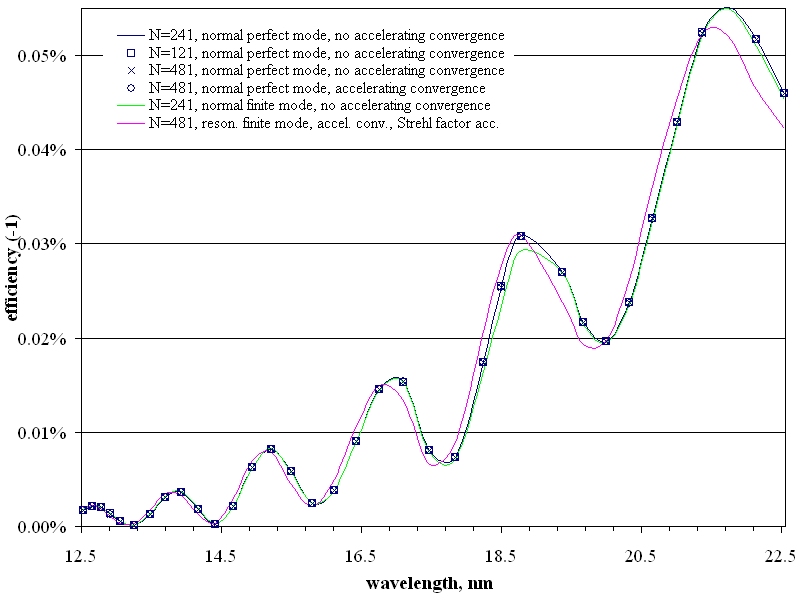

Fig. 31

Efficiency of -1 order of a replica of a 2400 g/mm blazed holographic grating computed with the average AFM groove profile of 8.5 nm depth and RIs taken from the Palik tables for different calculation modes vs. wavelength.
