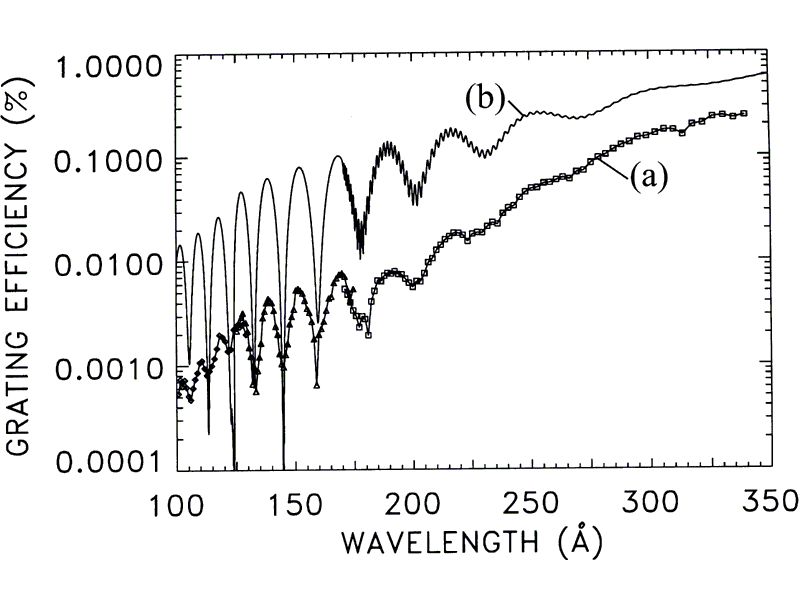

Fig. 29

(a) The measured grating efficiency in the zero order at an angle of incidence of 15.2°. (b) The reflectance of 743 Å of SiO2 and 30 Å of Al2O3 on opaque aluminum calculated at an angle of incidence of 15.2°.
