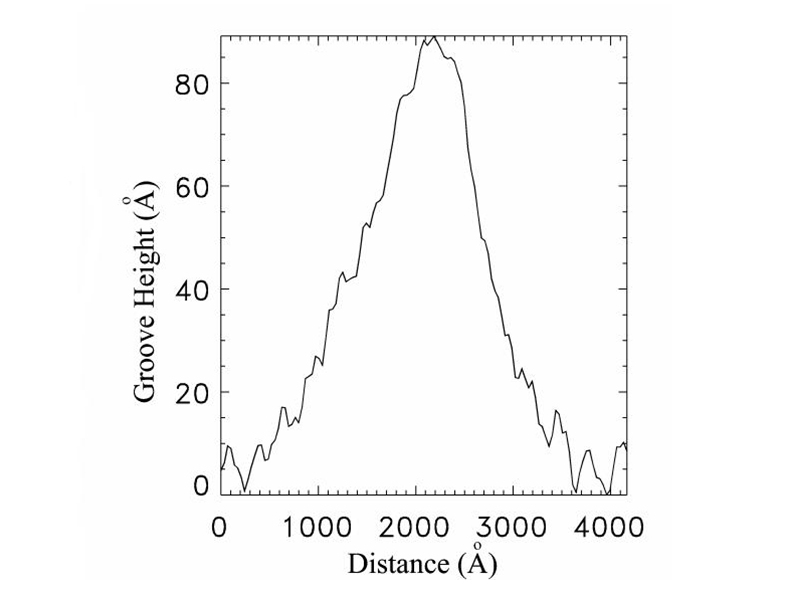

A typical groove profile derived from the AFM image of the 2400/mm replica grating. The average peak to valley groove depth is 90 Å The blaze angles, measured from the horizontal, of the left and right facets are 3.4 deg. and 6.2 deg., respectively.
